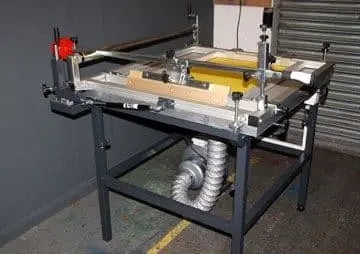

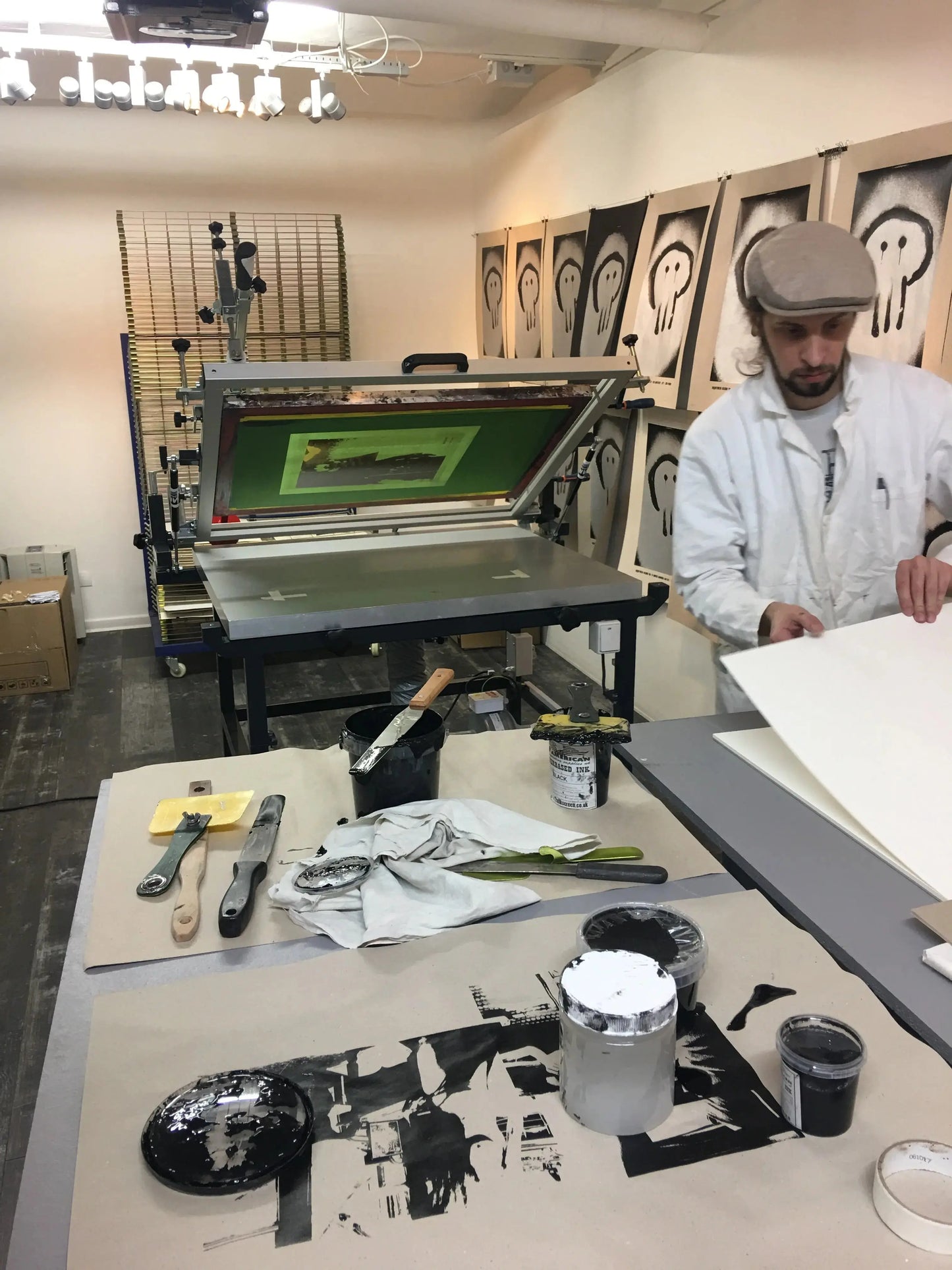

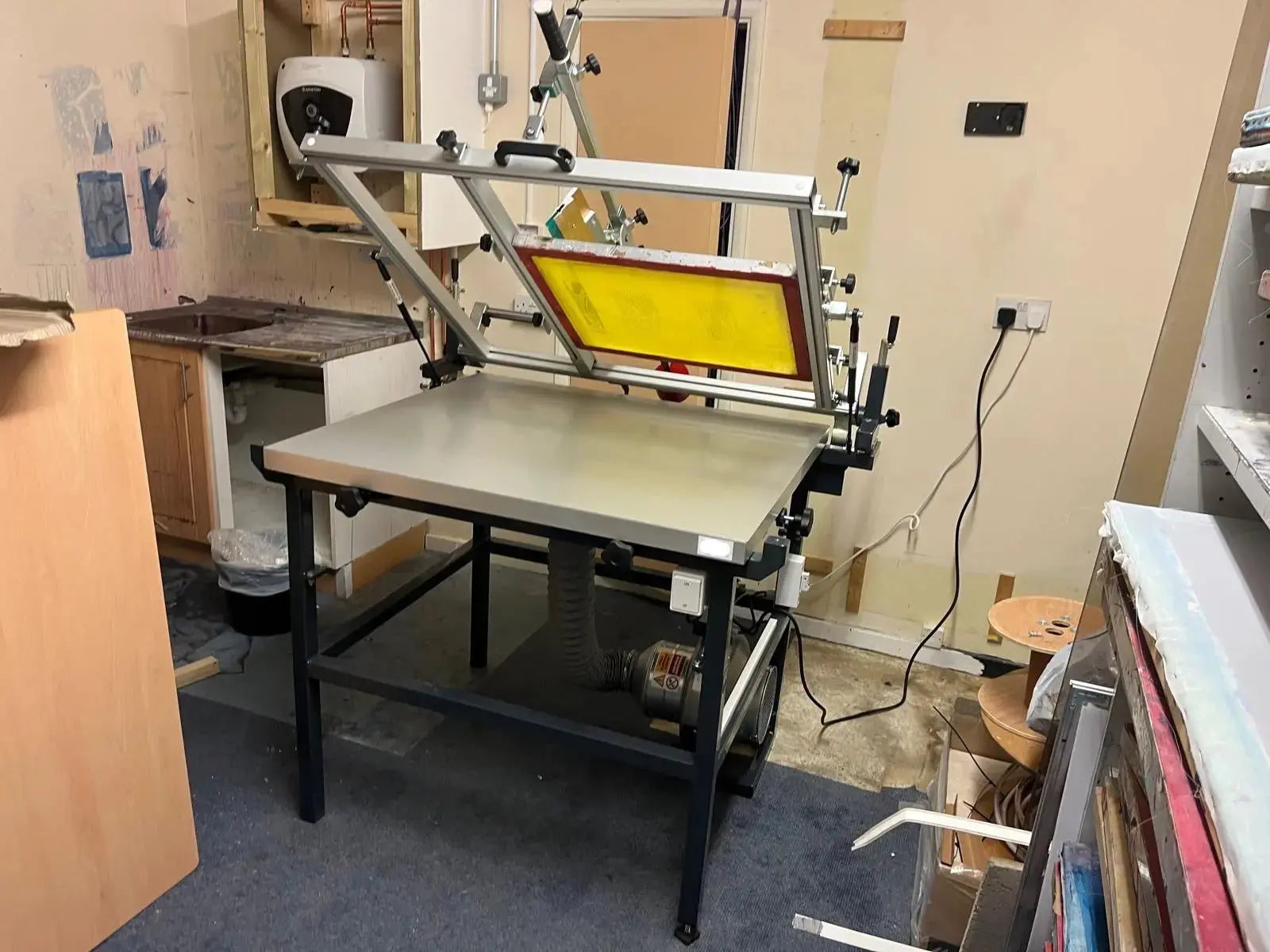

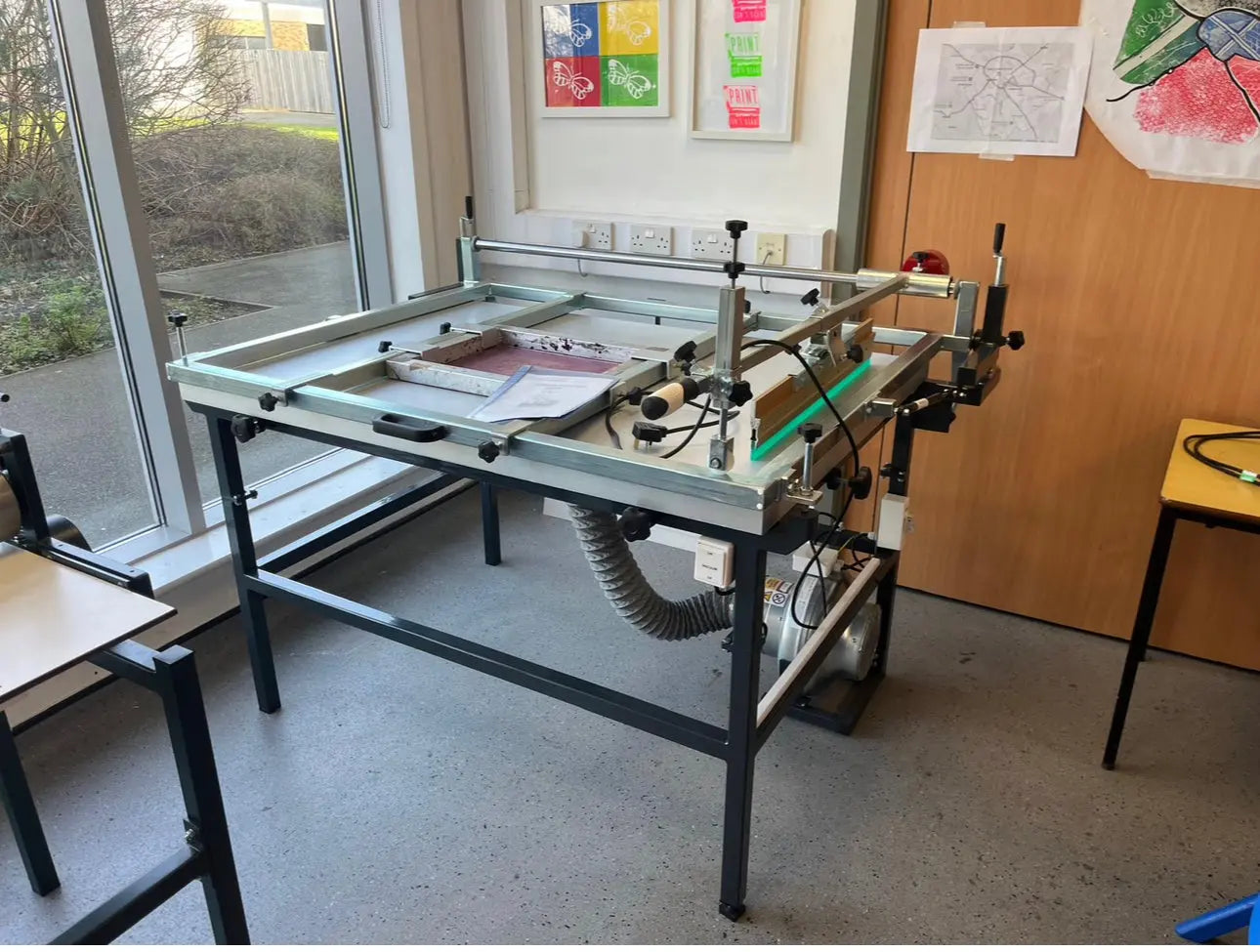

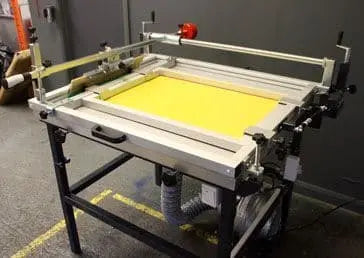

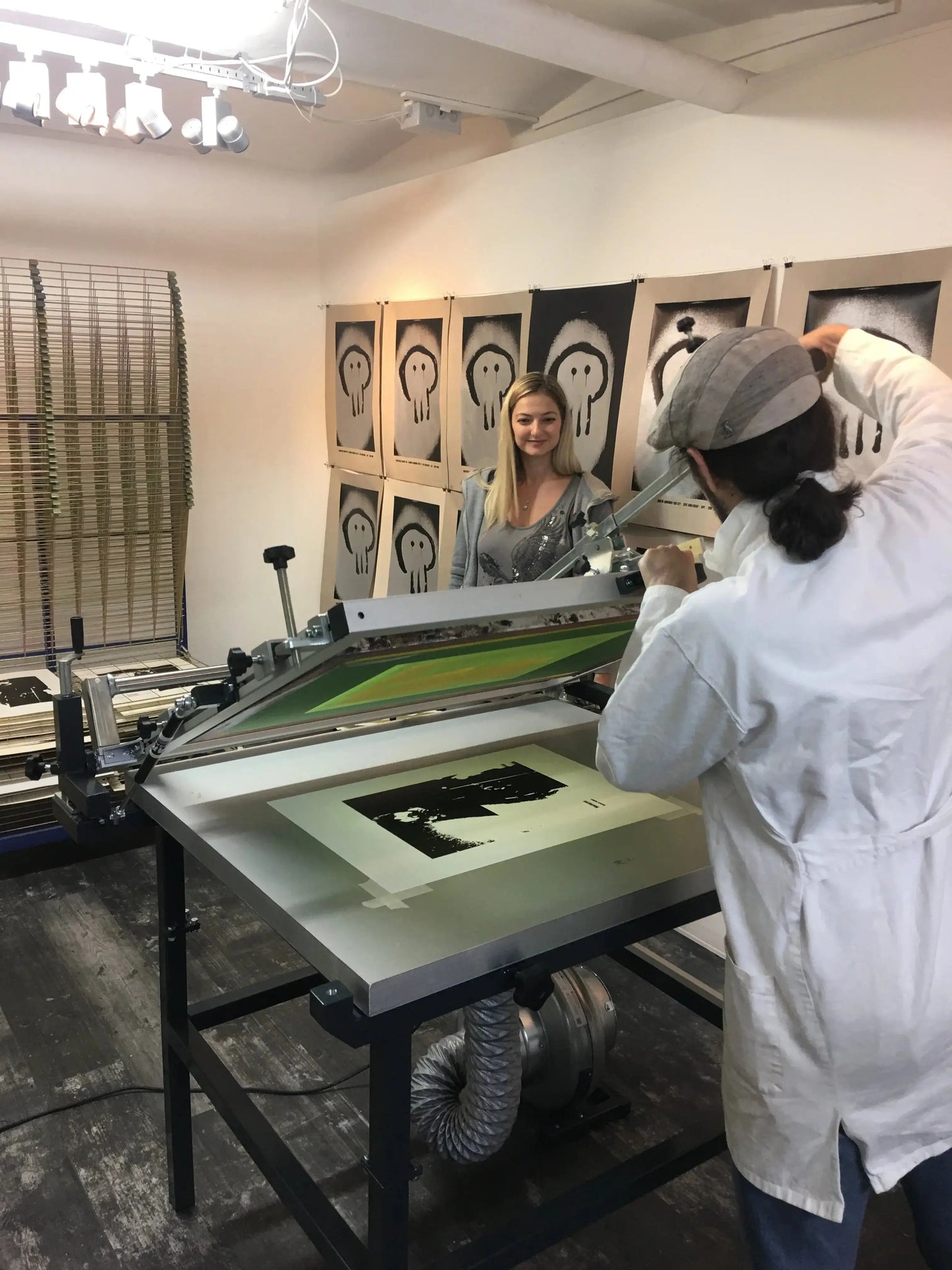

Manual Screen Printing Table with a one-sided guided squeegee, is intended for the printing of surface materials up to the B2 format (500 x 700 mm / 19.68inces x 27.5inches)
Built solid for precise registration and complex printing.
The board, glued from special dural plates, guarantees the quality of long-term levelness as well as even feeding.

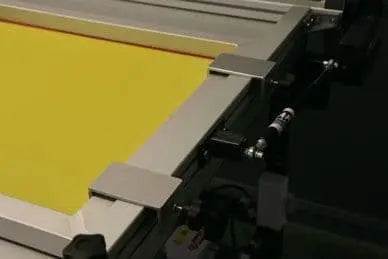

The board is inserted so that the regulating bolts can be easily adjusted in two axes for precise registration.
The screen is stabilized by two braces going into the frame with one crosspiece.

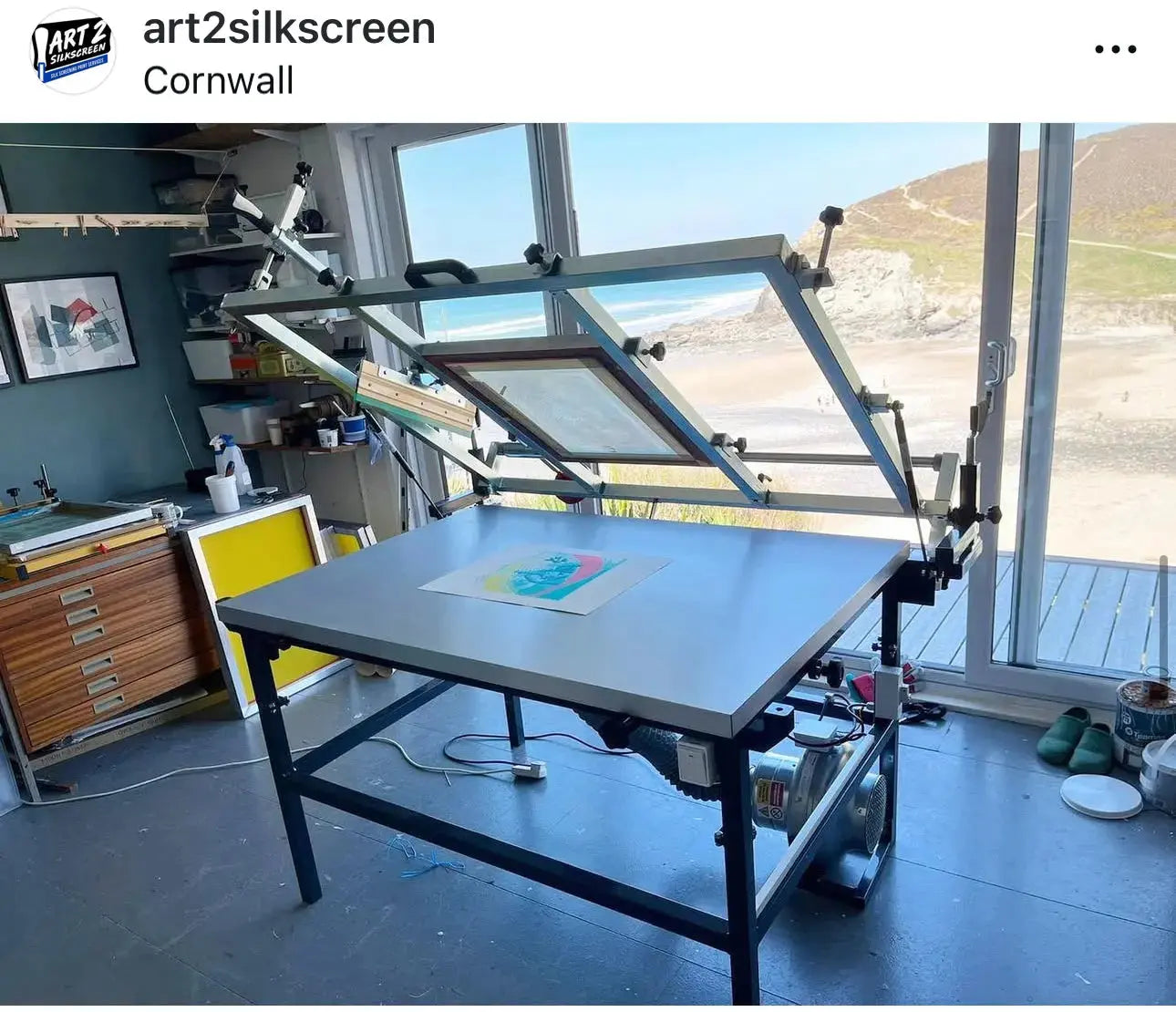

The frame is hinged around the axis on the back side of the table; the other sides of the table are free, which enables the printing of larger boards or roll printing.

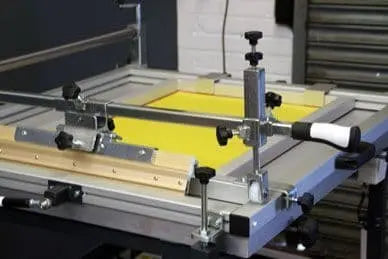

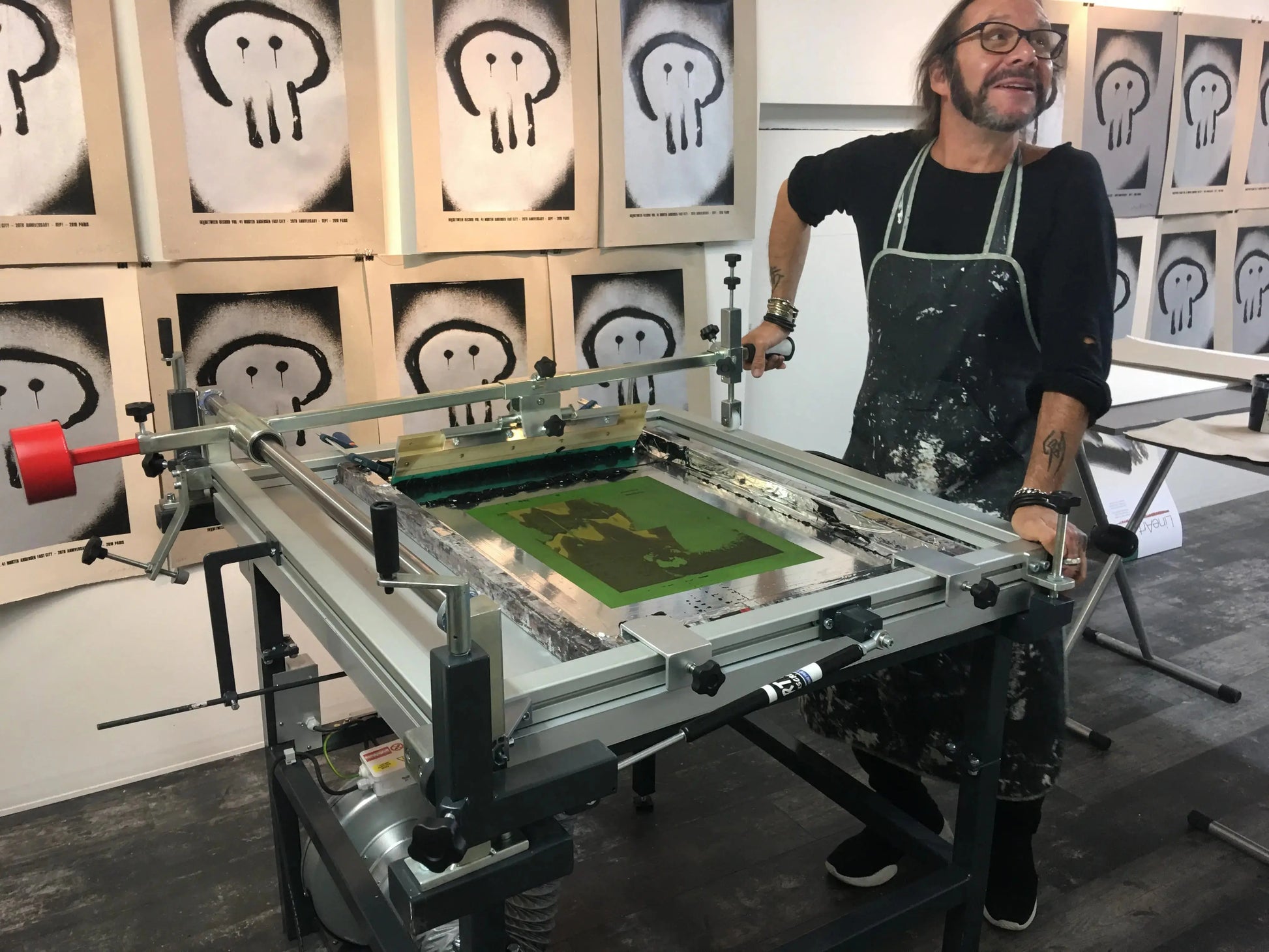

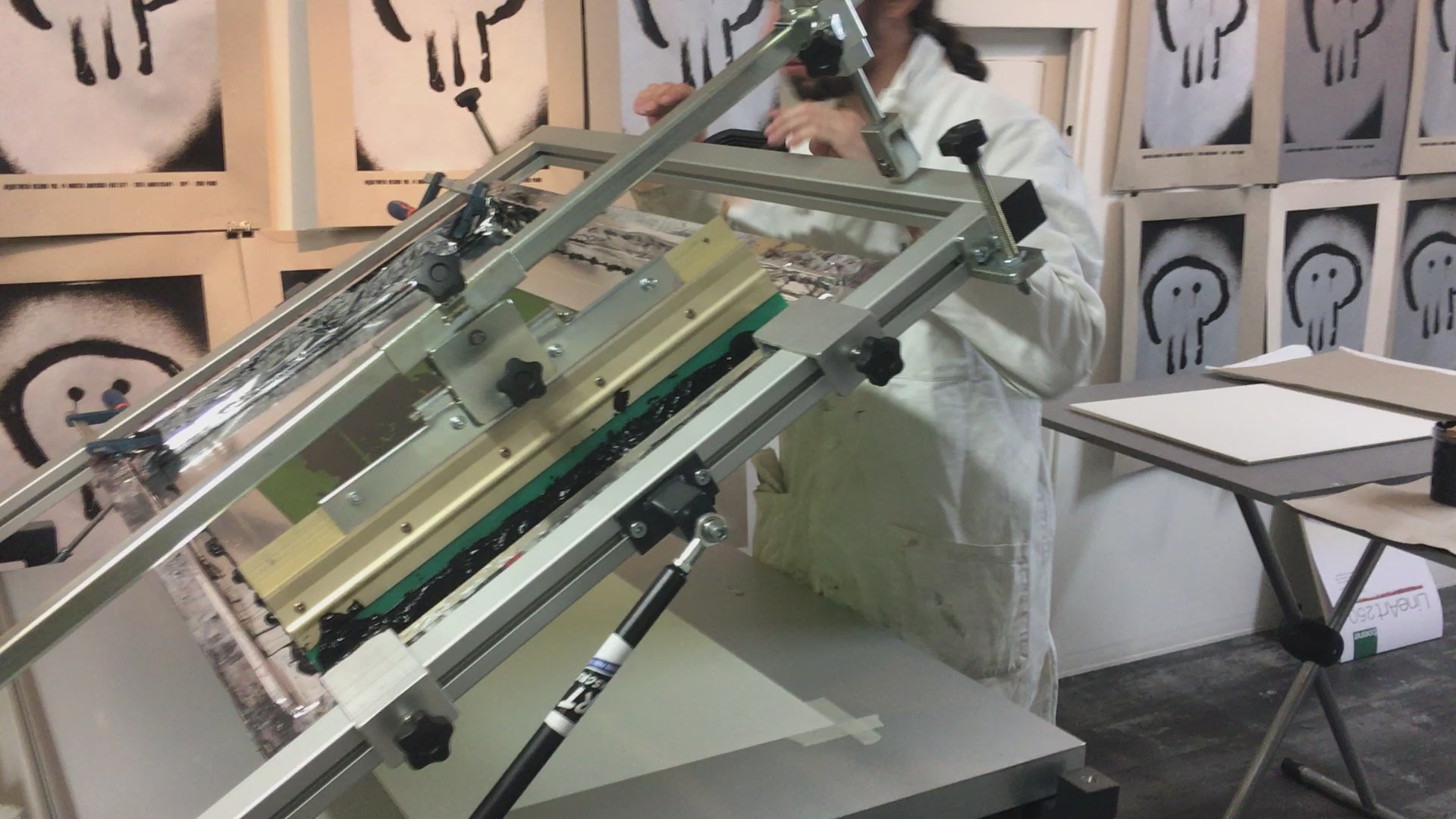

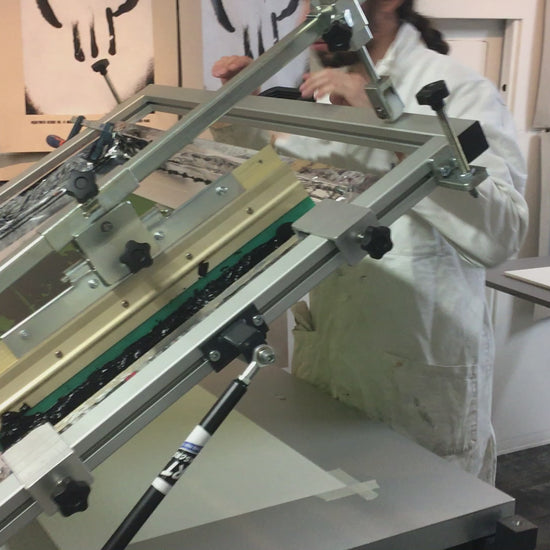

A one-sided, guided squeegee runs along a linear ball bearing on the guiding bar, which is fixed to the support frame.

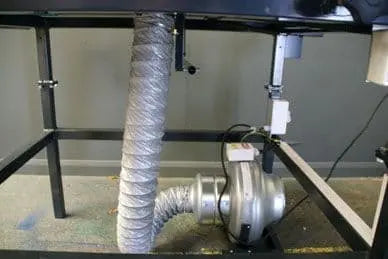

A noiseless, radial air pump (58 dB), automatically regulated when lifting and folding the screen, comes with the table.
A gripper, which guides the squeegee, ensures steady pressure, thereby guaranteeing high-quality, even printing over the entire surface, such that all copies in one job are the same without placing great demands on the machine operator.
The table has a high-quality finish, heavy-wear parts are made of galvanized metal.
12 Month Back to Base Warranty.
Please allow 6 weeks for delivery.
Technical data
Flatbed 1
Print Size
500 x 700 mm
Vacuum size
900 x 1000 mm
Max. frame size
860 x 930 mm
Height of printed material
0 - 80 mm
Sizes:
Width
1400 mm
Length
1350 mm
Height open/closed
1400 / 1200 mm
Weight
80 kg
Elec. Connection
230 V 50 Hz / 13 Amp
Delivery and installation to mainland England £150 Scotland/Wales and offshore please contact for a quotation.
